TSquareY1

Set of 4-300 RPM DC Geared Motor + Wheel

★★★★★

0.0/5 (0 reviews)

₹450

₹1,061

58% off

The 300 RPM DC Geared Motor Set is the high-performance standard for mid-speed mobile robotics. Unlike slower 60 RPM or 100 RPM variants, these 300 RPM motors provide the agility needed for racing robots, competitive line followers, and agile 4WD rovers. Each motor features an integrated gearbox that optimizes power delivery, making this kit a mechanical necessity for builders who prioritize speed and efficiency in their autonomous designs.

✓ In Stock (44 available)

▪High-Speed Gear Calibration: The 300 RPM rating is a mechanical necessity for robots participating in time-sensitive challenges, allowing for rapid repositioning and high-velocity obstacle avoidance.

▪Versatile Dual-Shaft Design: Most sets include dual-shaft BO motors, enabling the simultaneous mounting of wheels and optical encoders to provide precise distance and speed feedback.

▪Rugged All-Terrain Traction: The included wheels are typically engineered with soft rubber tires, providing the friction required to translate 300 RPM into smooth motion on tile, wood, or laboratory surfaces.

▪Low-Inertia Efficiency: These motors are designed for low-inertia startups, meaning your robot can reach its top speed almost instantly, which is critical for pulse-width modulation (PWM) speed control.

▪Universal Mounting Compatibility: With standard mounting holes and common shaft sizes, these sets are a mechanical necessity for pre-fabricated acrylic chassis and custom 3D-printed frames.

Quantity

4x 300 RPM Geared Motors + 4x High-Traction Wheels.

Operating Voltage

3V to 12V DC (Optimized for 6V–9V for longevity).

Output Speed

300 RPM (at 12V) / ~150–200 RPM (at 6V).

Gearbox Type

pur Gear System (Available in Plastic or Metal variants).

Shaft Diameter

6mm D-Shaft or Double-D Shaft (for BO models).

Load Current

300mA (Max); No-load current: ~60mA.

Torque

0.35 Kg-cm to 5 Kg-cm (Depending on BO or Metal Gear construction).

Electrobot DC Motor + Wheel (4pcs)

₹320

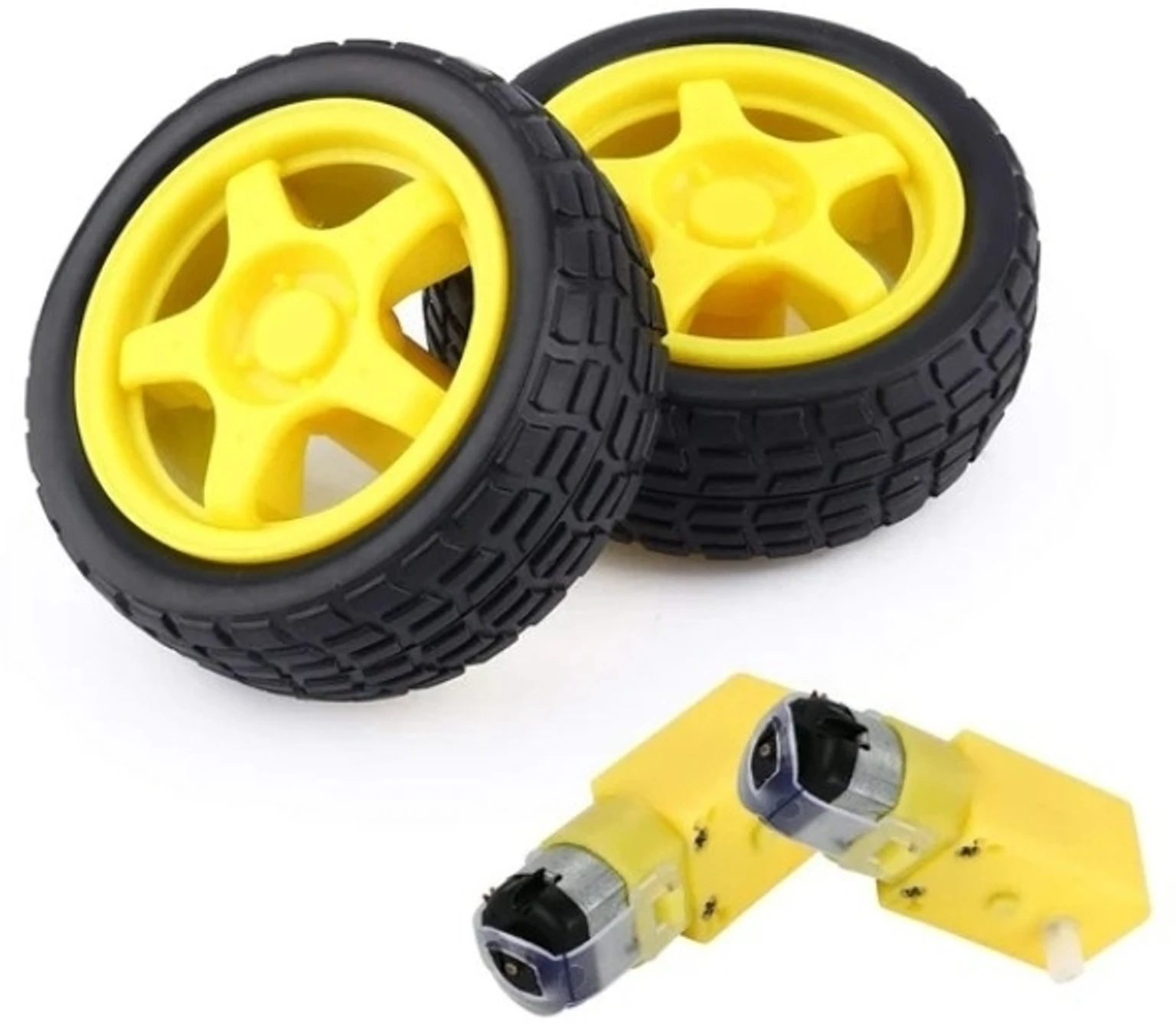

DC BO Dual Shaft Gear Motor With Wheels (2pcs)

₹165

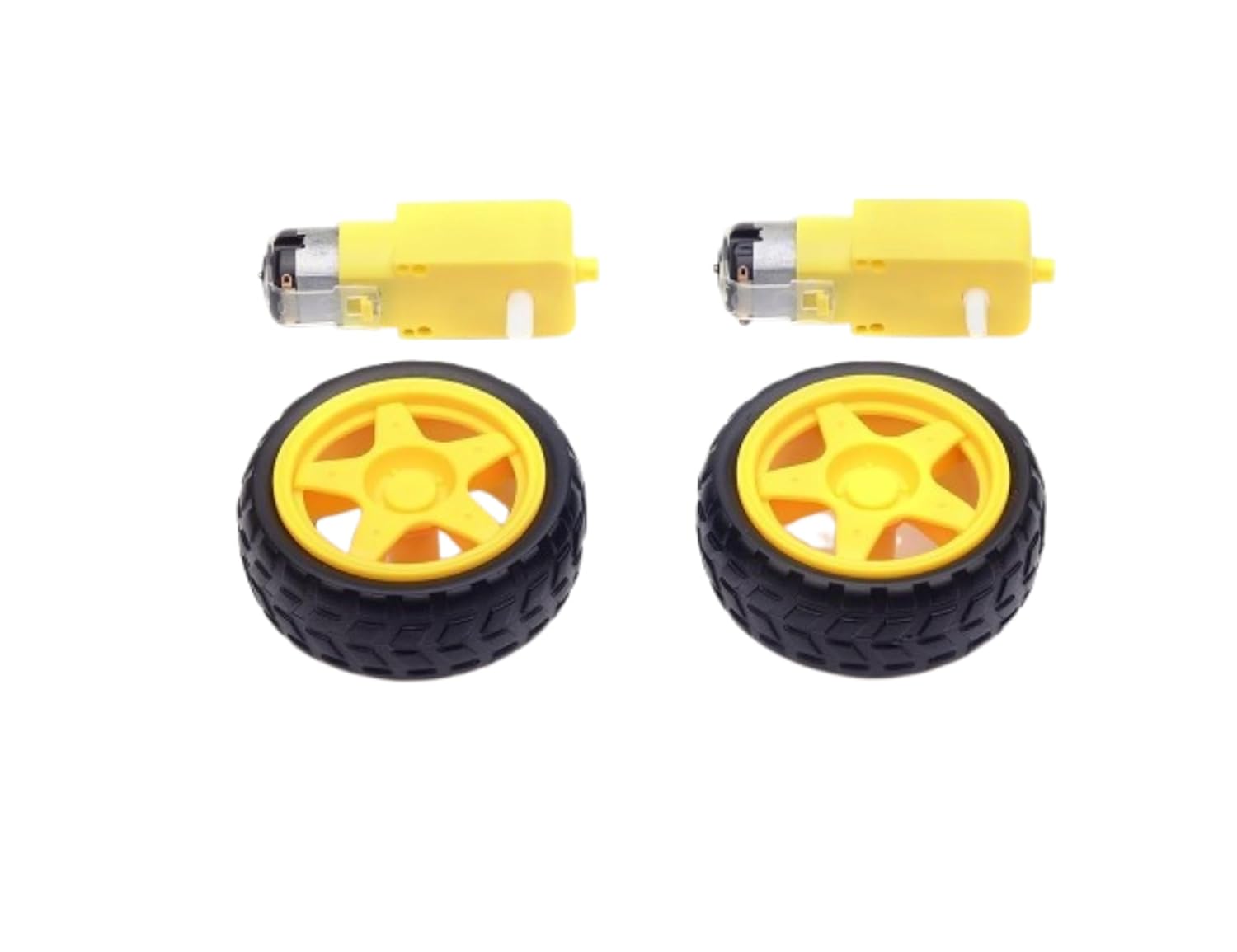

Combo of Dual Shaft Motor & Robot Wheel
