TSquareY1

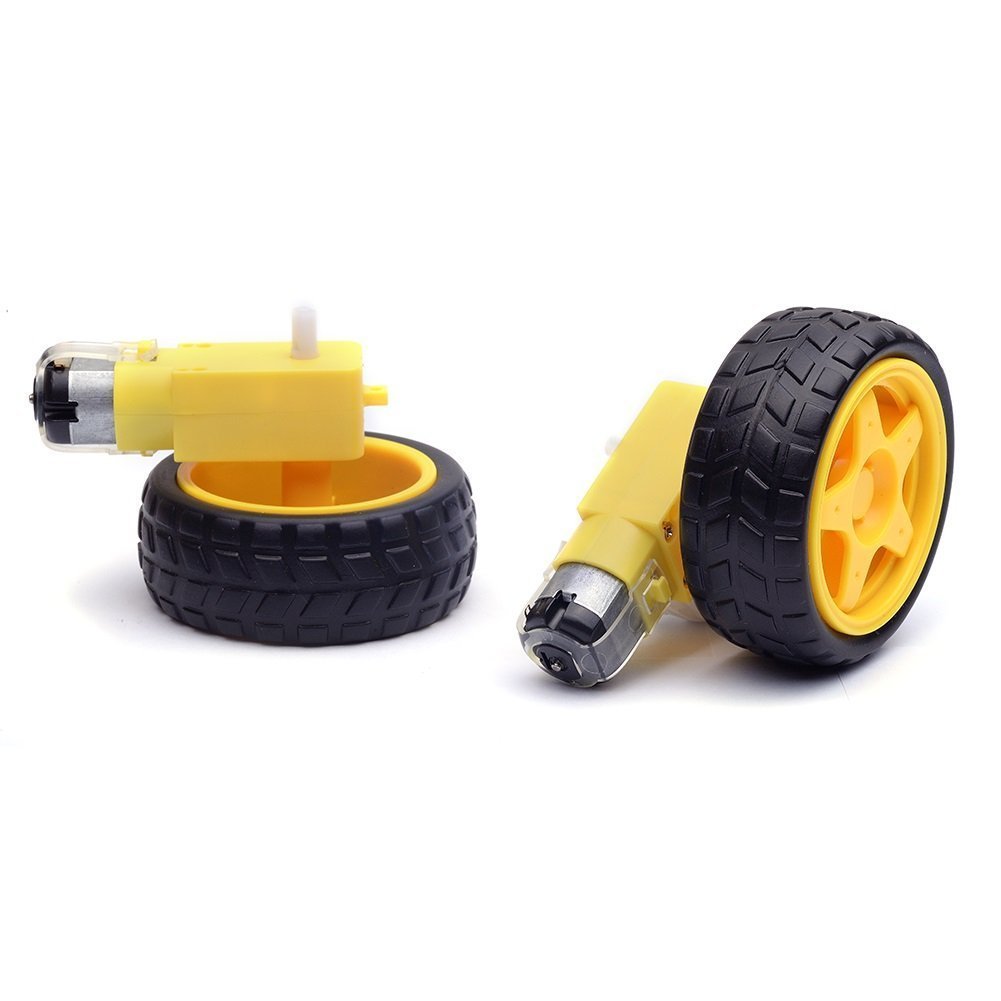

Combo of Dual Shaft Motor & Robot Wheel

★★★★★

0.0/5 (0 reviews)

₹120

₹177

32% off

The Dual-Shaft Motor and Wheel Combo is the definitive choice for intelligent robotic platforms. By providing an accessible rear shaft, this motor becomes a mechanical necessity for PID-controlled smart cars, allowing sensors to track rotation counts without interfering with the drive wheel. Operating seamlessly between 3V and 9V, this combo delivers the balanced torque required for line followers, maze solvers, and DIY Arduino rovers.

✓ In Stock (14 available)

▪Dual-Output Precision: The secondary shaft is a mechanical necessity for mounting optical encoder disks, enabling your robot to calculate distance, velocity, and position for dead-reckoning navigation.

▪High-Friction Tread Design: The included 65mm wheel features a specialized rubber compound that maximizes "bite" on smooth indoor surfaces, preventing slippage during rapid course corrections.

▪Integrated Gear Protection: The internal plastic gear train is housed in a dust-resistant casing, ensuring long-term durability and consistent torque delivery for educational robotics kits.

▪Lightweight Efficiency: Designed for battery-powered projects, this combo minimizes current draw, allowing your robot to run longer on standard AA or 18650 Li-ion cells.

▪Standardized Mounting: Featuring universal mounting holes, this set is a "drop-in" component for most DIY acrylic chassis, simplifying the assembly process for beginners.

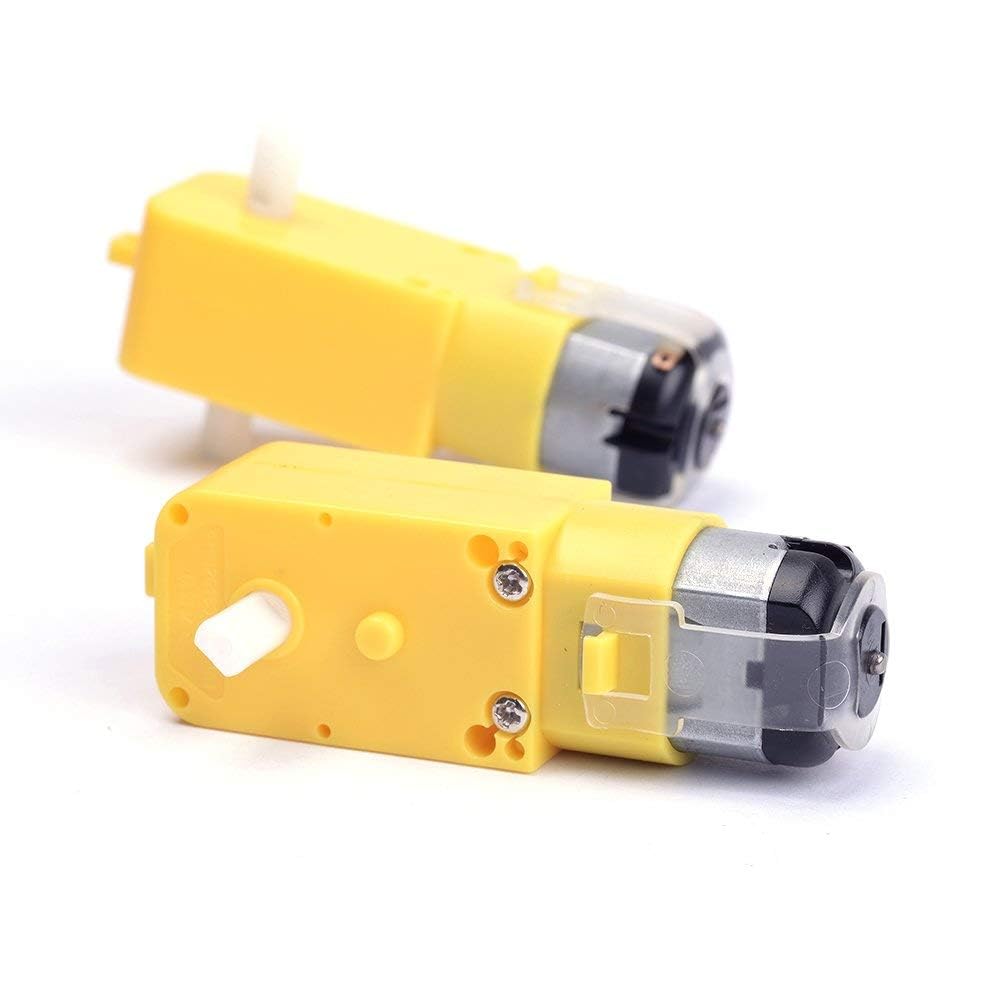

Motor Type

Dual-Shaft BO (Battery Operated) Gear Motor.

Operating Voltage

3V – 9V DC (Optimal performance at 6V).

Gear Ratio

1:48 (High-torque spur gearing).

No-Load Speed

125 RPM (at 6V).

Wheel Dimensions

65mm Diameter x 26mm Width.

Shaft Type

6mm Double-D Shaft (Secure press-fit).

Tyre Material

Anti-slip Soft Rubber with deep treads.
