Electrobot DC Motor + Wheel (4pcs)

★★★★★

0.0/5 (0 reviews)

₹320

₹413

23% off

The Electrobot DC Motor + Wheel Combo is the standard drive solution for four-wheeled robotic chassis. This kit pairs four high-efficiency BO (Battery Operated) gear motors with four high-traction 65mm wheels, providing the balanced torque and speed required for stable movement. Engineered for 3V to 6V operation, this set is a mechanical necessity for Bluetooth-controlled cars, line followers, and obstacle-avoiding rovers.

✓ In Stock (59 available)

▪Optimized 4WD Power Balance: By using four identical Electrobot motors, you ensure uniform RPM across all wheels, which is critical for straight-line tracking and predictable steering in autonomous code.

▪Plug-and-Play Integration: These motors are designed with a standard mounting footprint, making them a mechanical necessity for 4WD acrylic or metal chassis kits used in school science projects.

▪Dual-Shaft Versatility: Each motor features an extended shaft on both sides, allowing you to mount the wheel on one side and a speed encoder disk on the other to track distance and velocity in real-time.

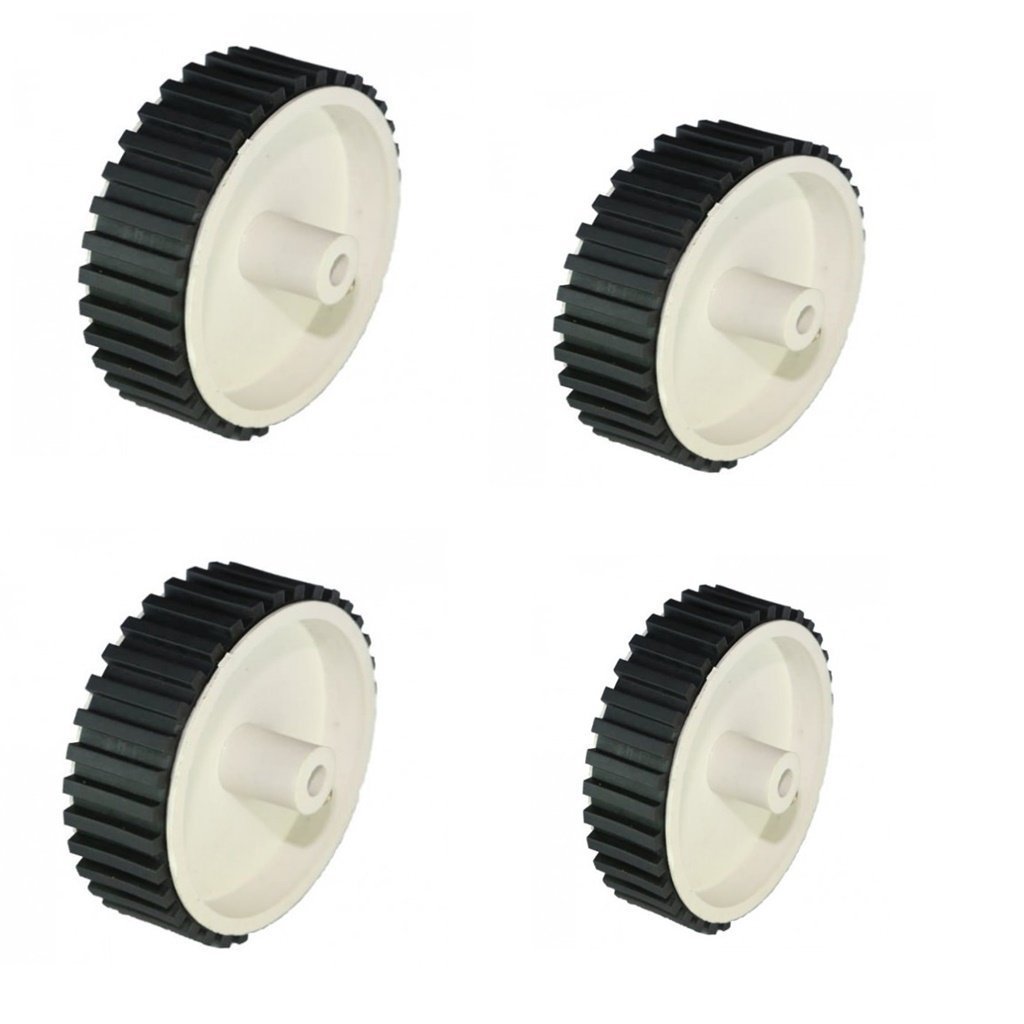

▪High-Friction Surface Grip: The included 65mm tires feature a specially formulated rubber tread that provides the "bite" needed for rapid acceleration and precise braking on indoor laboratory floors.

▪Low-Current Efficiency: Optimized for battery-powered use, these motors draw minimal current, extending the runtime of AA battery packs or Li-ion 18650 cells during long robotics competitions.

Quantity

4x Dual-Shaft BO Motors + 4x 65mm Wheels.

Operating Voltage

3V – 6V DC (Supports up to 9V for short bursts).

No-Load Speed

200 RPM (at 6V).

Wheel Dimensions

65mm Diameter x 26mm Width.

Shaft Type

6mm D-shape (Integrated flat-side for zero slippage).

Tyre Tread

High-Grip Rubber (Superior traction on smooth surfaces).

Motor Type

Brushed DC Gear Motor (Straight-axis design).
