DC BO Dual Shaft Gear Motor With Wheels (2pcs)

★★★★★

0.0/5 (0 reviews)

₹165

The Dual-Shaft BO Motor Set is the preferred choice for precision-focused robotics. Featuring output shafts on both sides of the gearbox, this motor allows for a symmetrical mechanical setup. This is a mechanical necessity for Arduino-based smart cars that require PID speed control; you can mount the wheel on the outer shaft and a speed encoder on the inner shaft. Operating efficiently between 3V and 9V, these motors provide the reliable torque and moderate RPM needed for stable.

✓ In Stock (20 available)

▪Symmetrical Dual-Shaft Versatility: The double-shaft configuration is a mechanical necessity for closed-loop control, allowing you to attach an encoder disc to track "clicks" and distance without interference from the wheel.

▪Low-Inertia BO Gearing: Designed for battery-operated efficiency, the internal plastic gearbox provides high torque while keeping the motor lightweight, making it ideal for mobile 2WD or 4WD chassis.

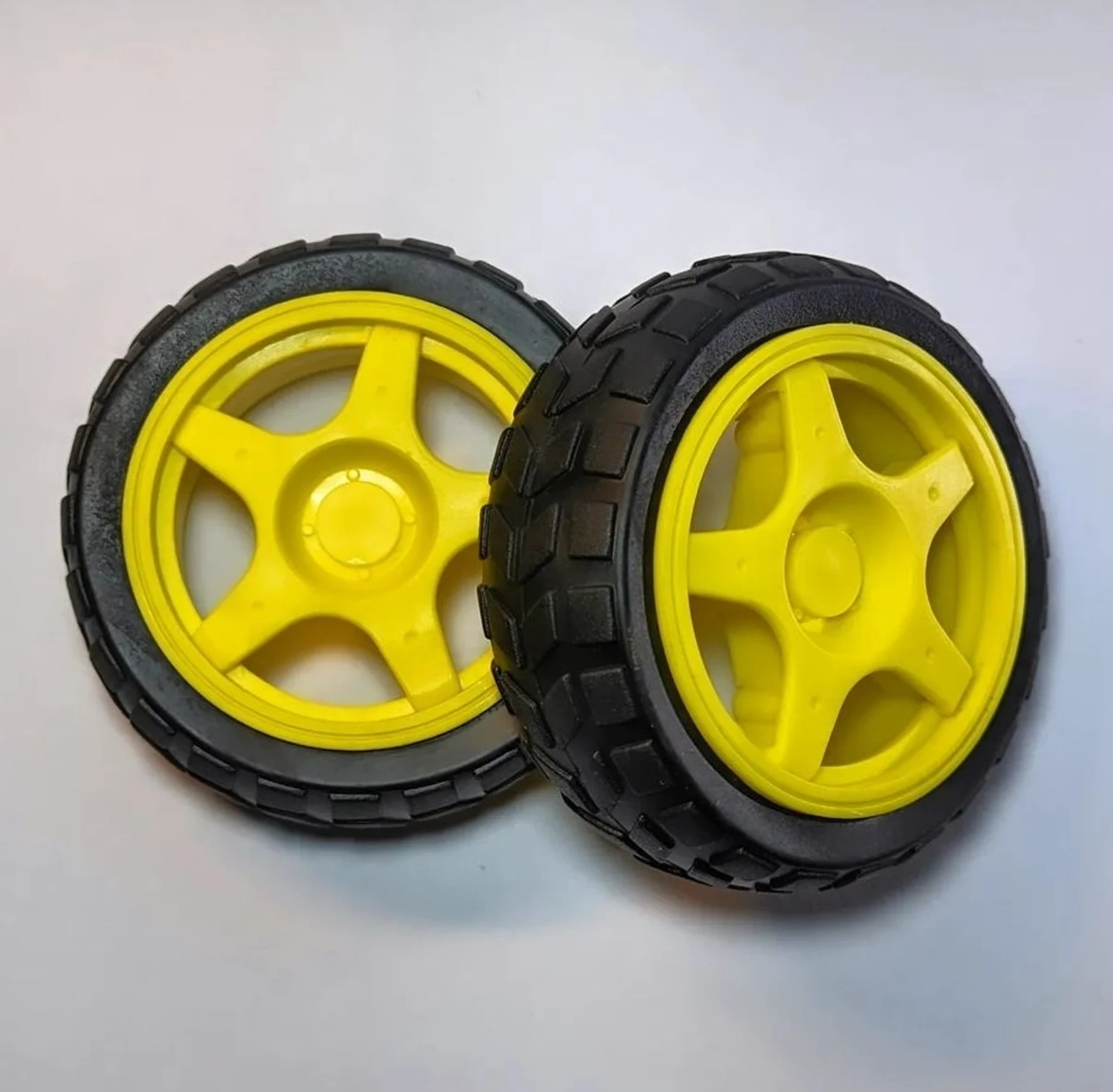

▪High-Traction 65mm Wheels: The tires feature a non-slip rubberized tread and a nylon-reinforced rim, ensuring your robot maintains grip on varied indoor surfaces during autonomous maze solving.

▪Universal Arduino Compatibility: These motors are standard in the hobbyist world, ensuring they fit perfectly with L298N drivers and pre-drilled acrylic robot chassis plates.

▪Vibration-Dampening Design: The internal gear train is engineered to absorb minor mechanical shocks, protecting the motor and ensuring a quiet, smooth operation for delicate sensing equipment.

Quantity

2x Dual-Shaft BO Motors + 2x High-Traction Wheels.

Operating Voltage

3V – 9V DC (Recommended 6V for optimal torque).

Output Speed

100 RPM to 150 RPM (at 6V).

Shaft Type

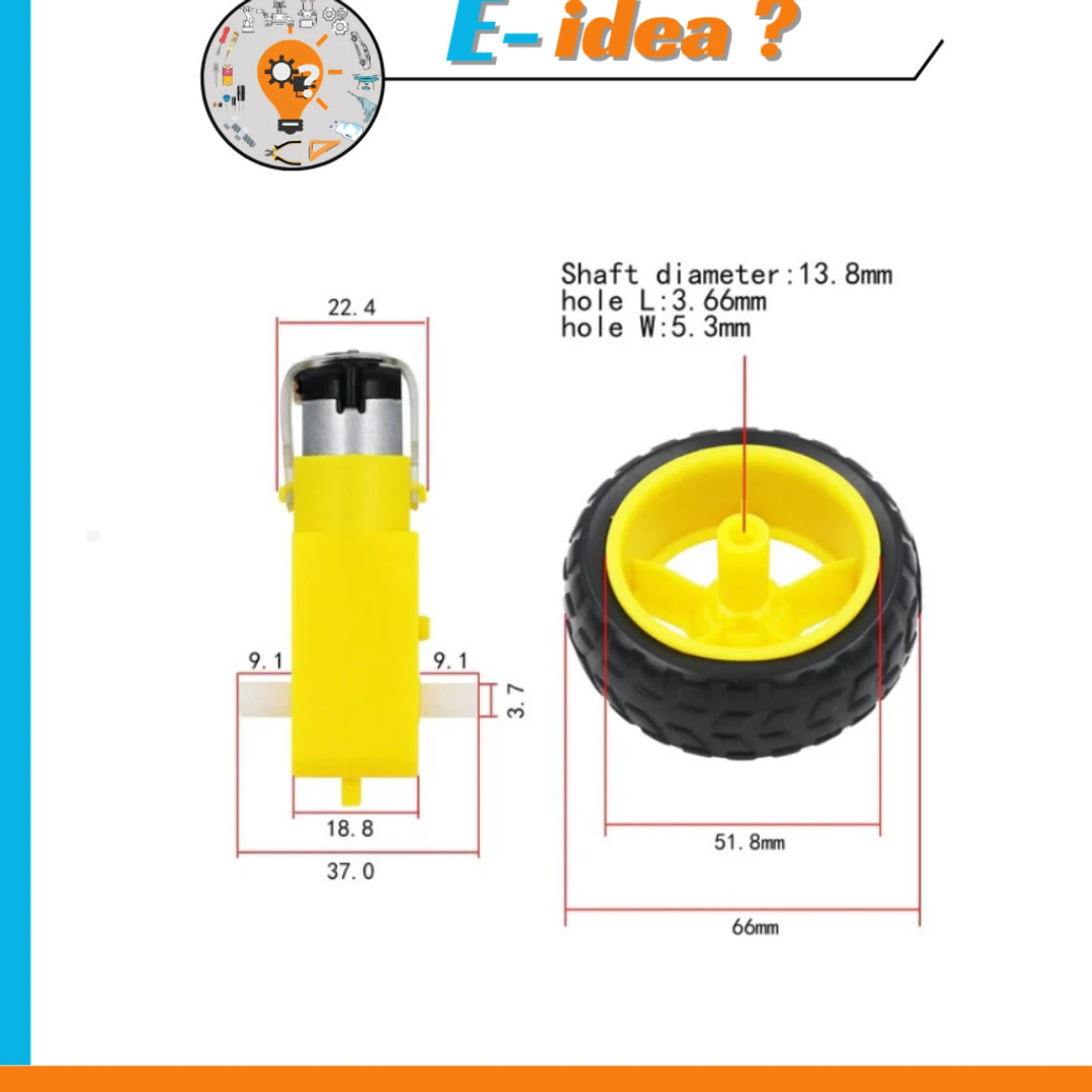

Double-D 6mm Shaft (Prevents wheel slippage).

Gear Ratio

1:48 (Precision spur gear system).

Wheel Diameter

65mm (Standard hobby-grade rubber tread).

Torque

~0.8 kg-cm to 3.5 kg-cm (Depending on voltage).
