NRF

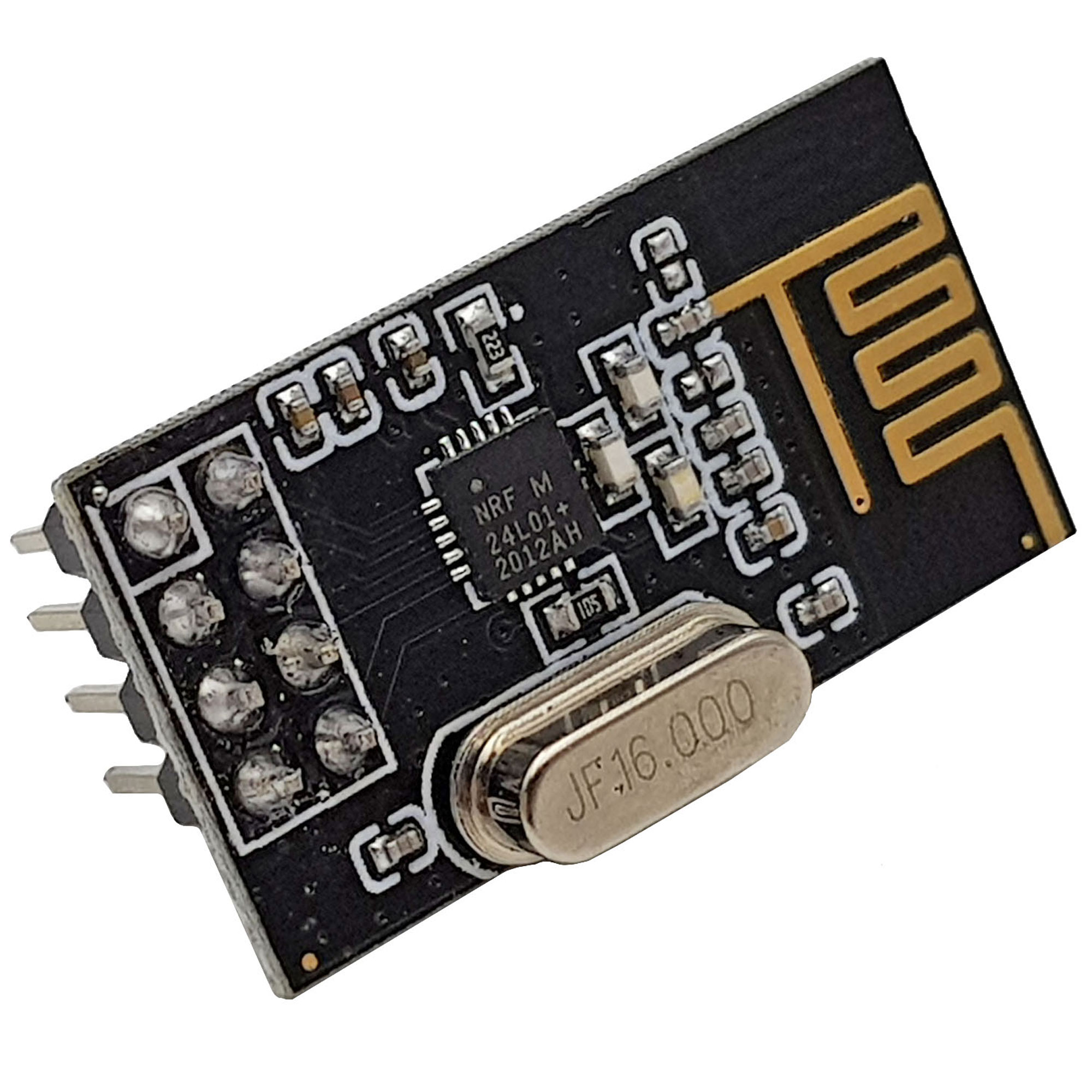

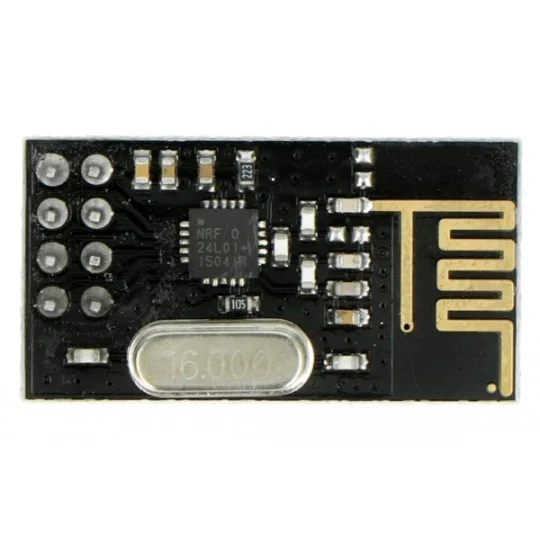

NRF24L01 RF
★★★★★
0.0/5 (0 reviews)₹119
₹165
28% off
The NRF24L01+ series is a mechanical necessity for drones, wireless sensor networks, and remote control systems. Operating on the license-free 2.4GHz ISM band, these modules handle complex tasks like packet handling, automatic acknowledgement (Auto-ACK), and retransmission entirely in hardware. This offloads the work from the microcontroller, making it the top-rated choice for achieving robust wireless links with minimal code complexity.
✓ In Stock (26 available)
1
▪Hardware-Level ShockBurst™ Protocol: The NRF24L01+ is a mechanical necessity because it handles CRC error checking and auto-retransmit internally. If a packet is lost due to interference, the chip automatically retries until successful, ensuring data integrity without extra code.
▪Versatile Range Options: Choose the Standard PCB Antenna for compact indoor use (up to 100m) or the PA+LNA External Antenna version for high-performance outdoor links (up to 1000m).
▪Low-Power Efficiency: A mechanical necessity for remote weather stations, these modules consume less power during active transmission than a single standard LED, making them ideal for CR2032 or LiPo battery operation.
▪125 Selectable Channels: Avoid interference from local Wi-Fi by choosing from 125 independent frequencies. This is a mechanical necessity for operating multiple independent robot teams in the same room without crosstalk.
▪Compact Integration: The small form factor is a mechanical necessity for wearable electronics and micro-bots, fitting easily into tight spaces while maintaining high RF sensitivity.
Frequency Band
2.4 GHz ISM (Global license-free).
Data Rates
Selectable 250 kbps, 1 Mbps, or 2 Mbps.
Operating Voltage
1.9V to 3.6V (3.3V recommended).
I/O Tolerance
5V Tolerant inputs (safe for direct Arduino connection).
Interface
4-wire hardware SPI (up to 10 Mbps).
Network Capacity
Supports MultiCeiver™ (1 receiver can listen to 6 transmitters).
Power Consumption
As low as 11.3mA during transmission.
