TSquareY1
DC Motor Wheel Set (4pcs)
★★★★★
0.0/5 (0 reviews)₹210
₹283
26% off

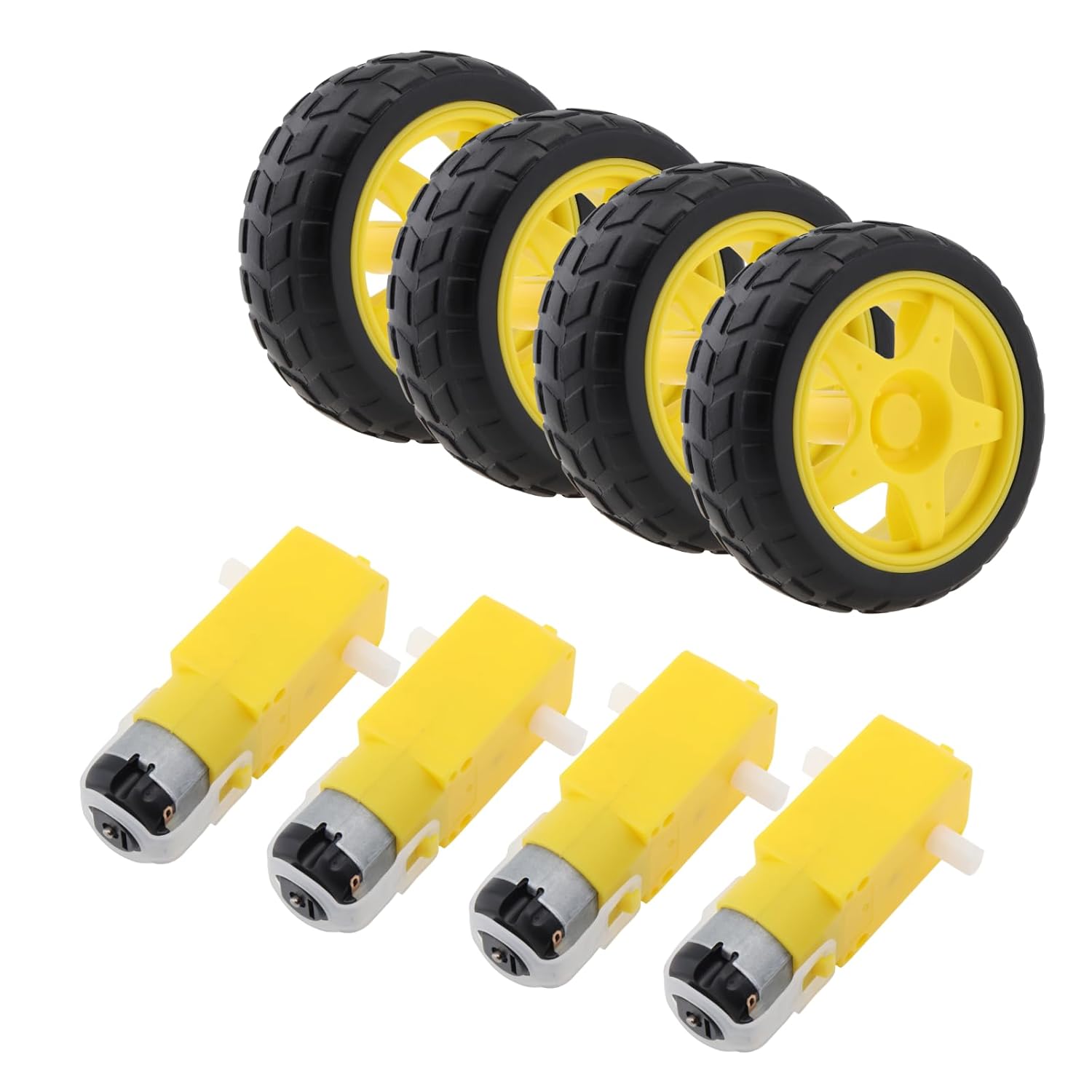

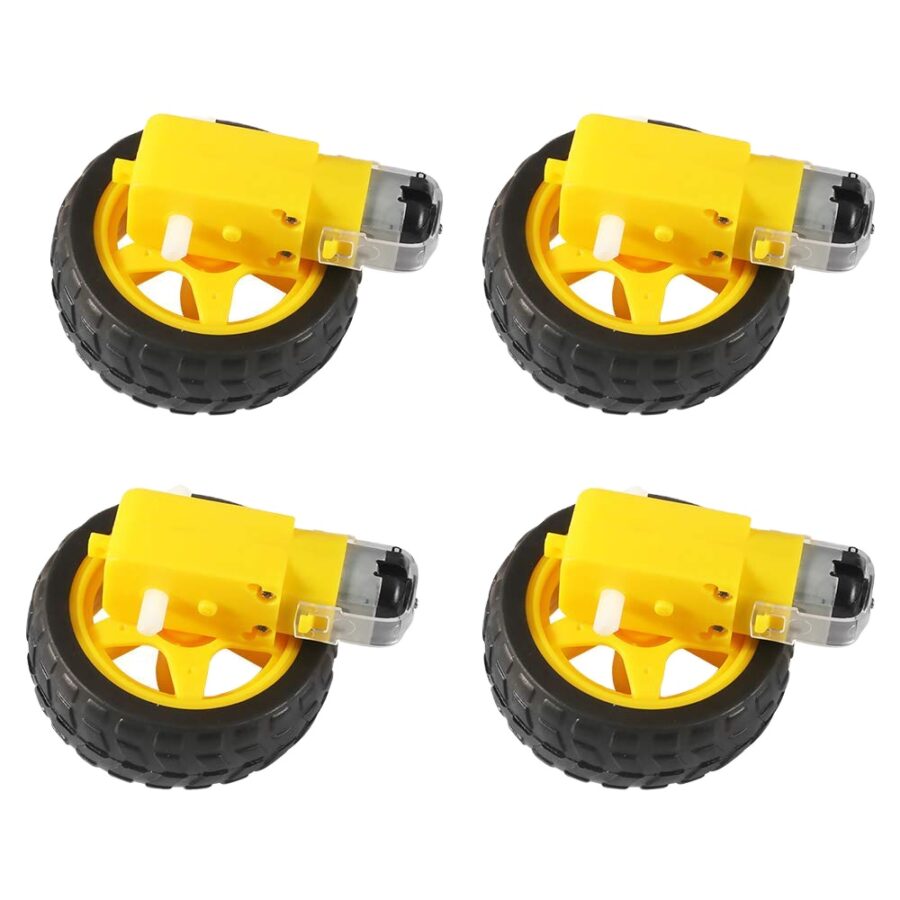

The 4-Piece DC Motor and Wheel Set is the definitive drive solution for multi-wheel robotic platforms. Featuring four high-torque BO (Battery Operated) dual-shaft motors and four matching 65mm high-grip tires, this synchronized set provides the stability and traction required for 4WD rovers and autonomous vehicles. Engineered for a wide voltage range (3V–9V), these motors deliver consistent RPM across all four wheels, ensuring your robot moves straight and handles obstacles with ease.
✓ In Stock (44 available)
1
▪Synchronized 4WD Performance: This matched 4-pack ensures all motors have the same internal gear ratio, preventing the "veering" issues common when mixing motors from different batches.
▪Superior All-Terrain Grip: The 65mm rubber tires feature an anti-slip tread pattern that excels on wood, tile, and concrete, providing the necessary friction for hill-climbing and heavy-load transport.
▪Dual-Shaft Expandability: Every motor in this set features a dual output shaft, allowing you to mount speed encoder disks on the inner side to track distance and velocity precisely.
▪Universal Chassis Fit: Standardized mounting holes make this kit compatible with almost all DIY acrylic and metal robot frames, simplifying the assembly process for students.
▪High Efficiency/Low Noise: The precision-molded plastic gears minimize acoustic noise while maximizing battery life, allowing for longer runtimes during competitions and demonstrations.
Quantity
4x Dual-Shaft BO Motors + 4x 65mm Wheels.
Operation Voltage
3.6V – 9V DC (Optimal at 6V).
Gear Reduction Ratio
1:48 (High-torque configuration).
Wheel Dimensions
65mm Diameter x 27mm Width.
Speed (No Load)
125 RPM at 6V.
Torque
~0.8 kg-cm at 6V.
Shaft Type
6mm D-shape (Prevents wheel slippage).
