TSquareY1

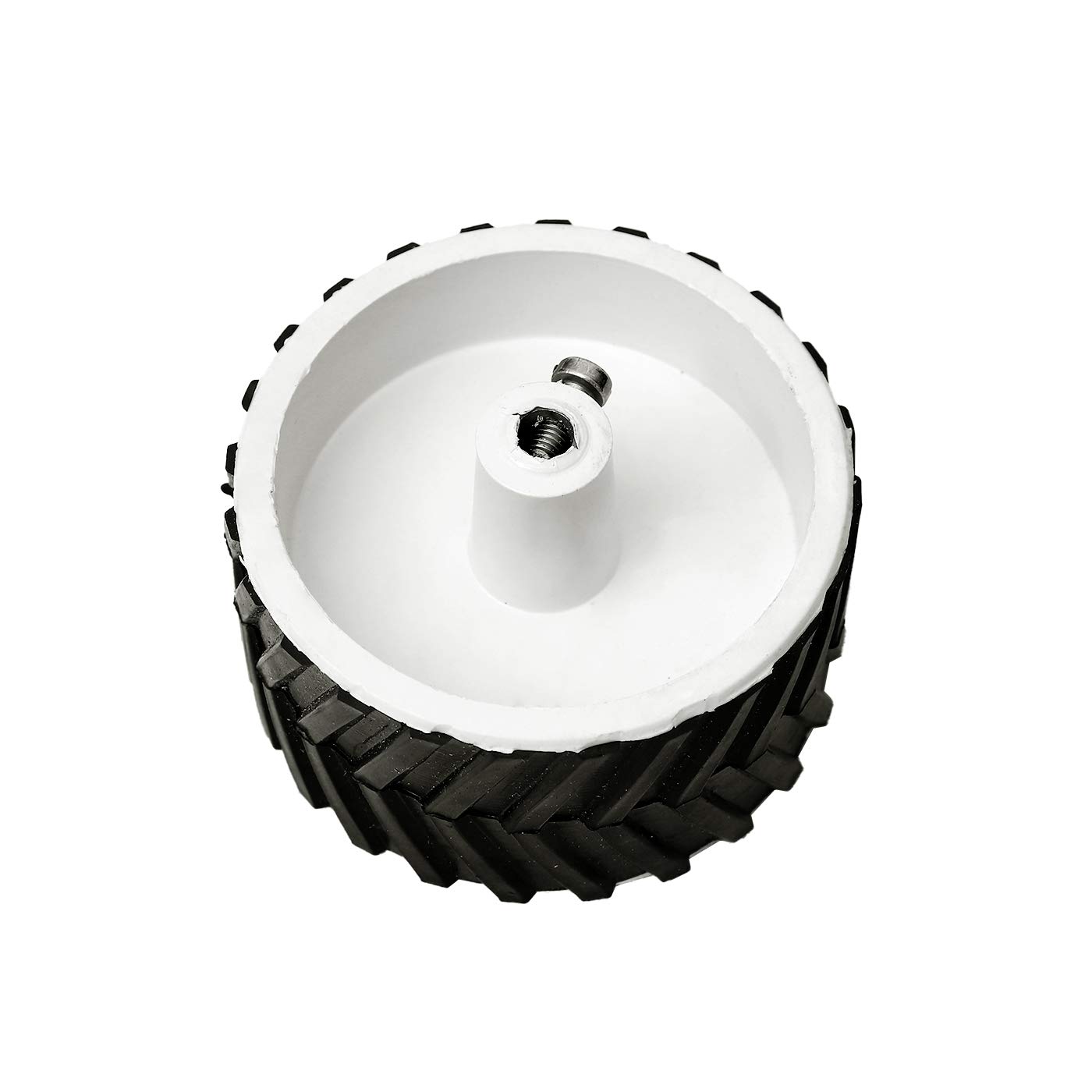

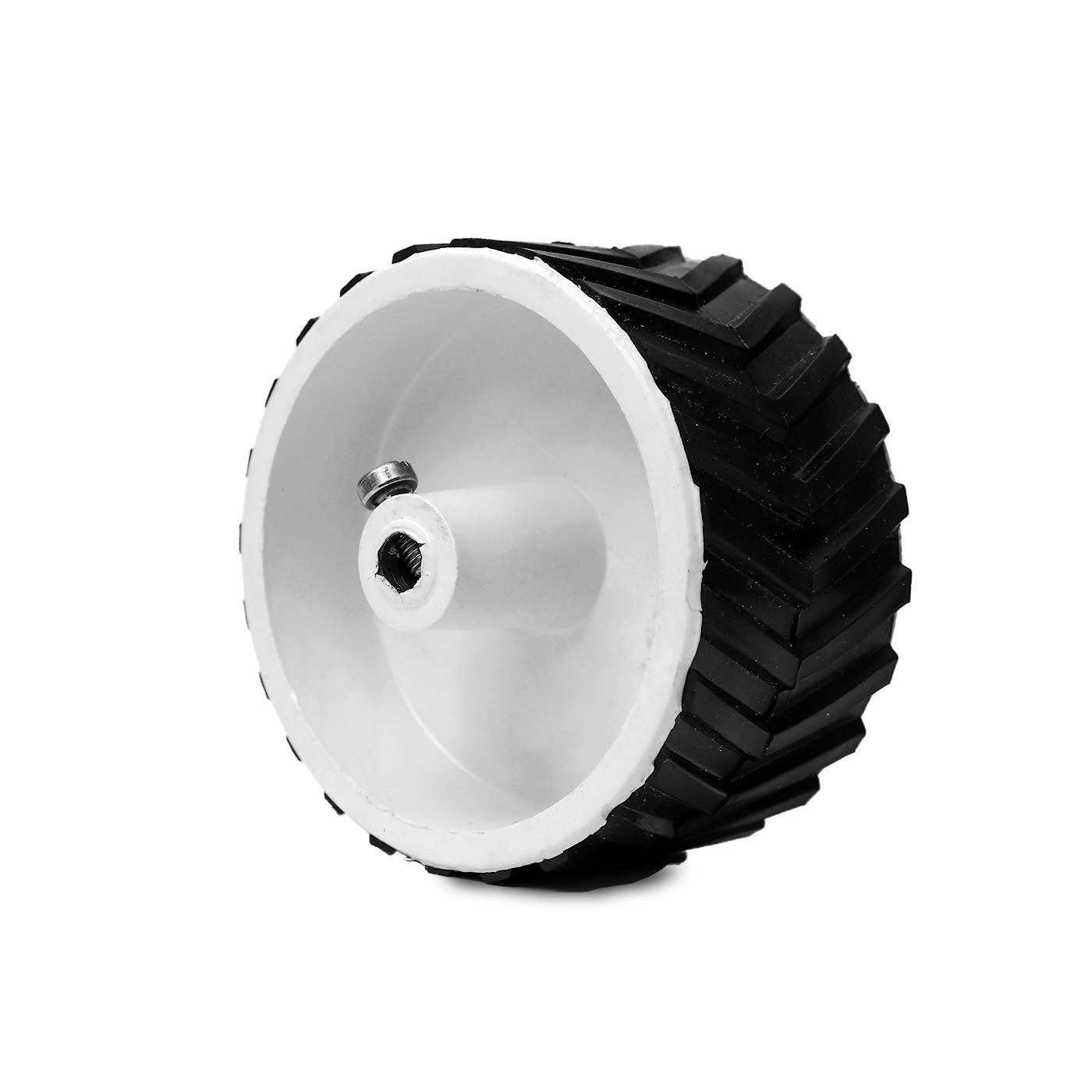

7cm x 4cm Robotic Wheel DIY (4pcs)
★★★★★
0.0/5 (0 reviews)₹150
₹212
29% off
The 70mm x 40mm Robotic Wheel is engineered for makers who require more from their drive systems. With a significant 7cm diameter and an extra-wide 4cm tread, these wheels provide superior ground clearance and a massive contact patch. This ensures your robot can overcome obstacles and maintain traction on surfaces that stall smaller wheels. Each wheel features a 6mm center-bore with a built-in set-screw, providing a "zero-slip" connection to high-torque DC motors.
✓ In Stock (16 available)
1
▪Ultra-Wide Stability Profile: The 40mm width is nearly double that of standard hobby wheels, providing a low-pressure footprint that prevents the robot from tipping and improves weight distribution for heavy battery packs.
▪Superior All-Terrain Traction: The 7cm diameter offers the vertical clearance needed to transition between different floor heights (e.g., carpet to tile) or navigate small pebbles and outdoor debris.
▪Reinforced Metal-Lock Hub: Unlike press-fit plastic hubs, these wheels feature a 6mm hole with a set-screw, acting as a mechanical necessity for high-torque motors to prevent the axle from "stripping" the wheel under load.
▪High-Grip Rubber Compound: The tires are molded from a soft-touch rubber that excels on smooth surfaces, providing the "bite" required for rapid acceleration and precise PID-controlled braking.
▪Ruggedized Rim Engineering: Constructed from shatter-proof ABS, the internal rim is designed to handle the mechanical vibrations and side-impacts typical of competitive robotics and rough-terrain testing.
Quantity
4x High-Clearance Wheels.
Dimensions
70mm (7cm) Diameter x 40mm (4cm) Width.
Shaft Compatibility
6mm Bore with integrated screw-mount hub.
Tyre Material
High-Friction Soft Rubber (Deep tread).
Rim Material
Reinforced ABS Plastic (Impact resistant).
Load Rating
Supports up to 3.5kg per wheel.
Drive Type
Compatible with Center Shaft and Side Shaft DC Motors.
