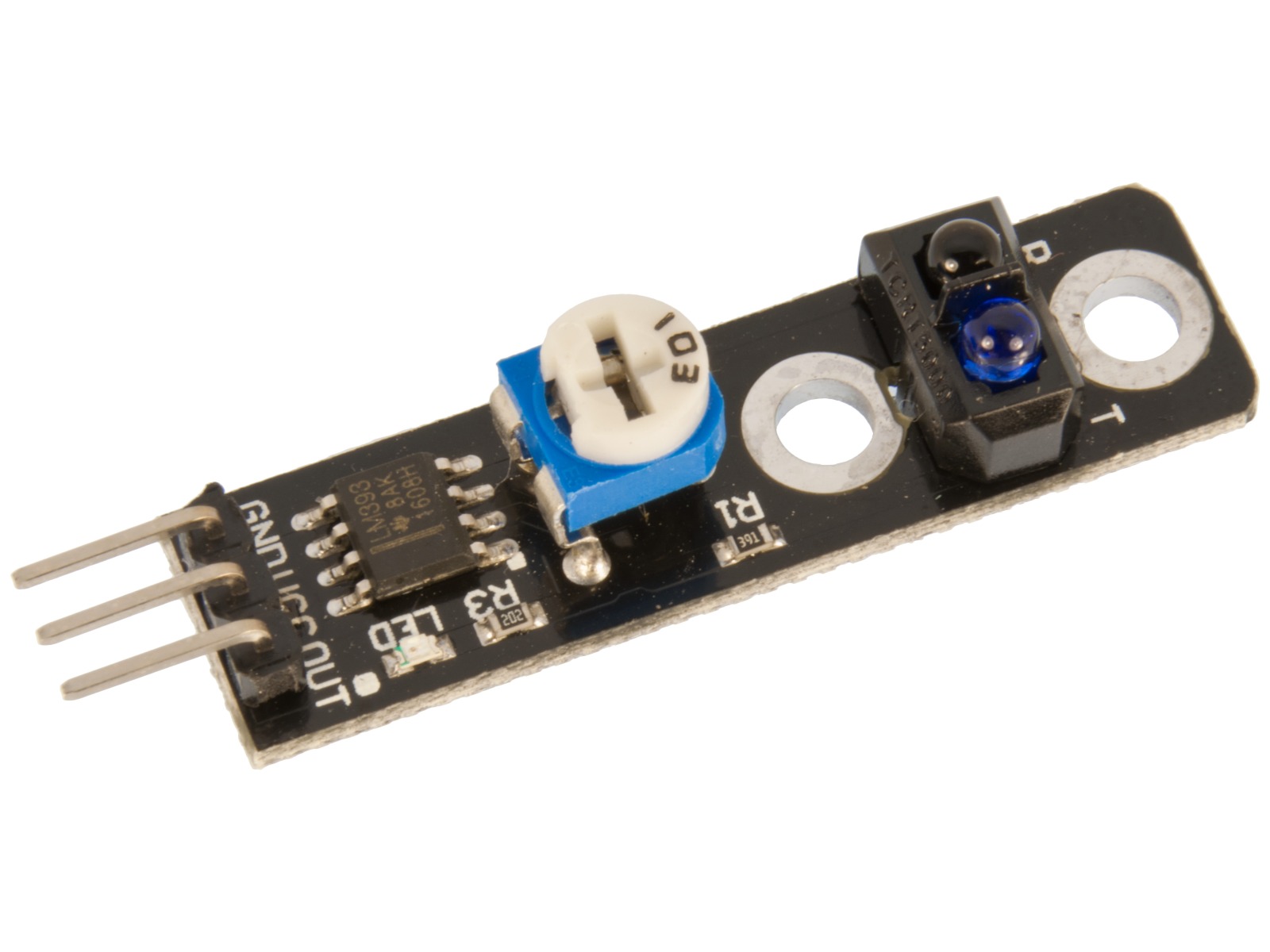

TCRT5000 IR Line Sensor
★★★★★
0.0/5 (0 reviews)₹70
₹100
30% off
The TCRT5000 Sensor Module is a high-precision optical tracking solution that integrates an infrared emitter and a phototransistor in a single package. It works by emitting IR light and measuring the reflection; since black surfaces absorb IR while white surfaces reflect it, the sensor is a mechanical necessity for line-following robots, maze solvers, and edge-detection systems. Featuring an onboard LM393 comparator, it provides a clean digital signal for immediate microcontroller response.
✓ In Stock (46 available)
1
▪Contrast-Specific Navigation: The TCRT5000 is a mechanical necessity because it can reliably distinguish between reflective and non-reflective materials, making it the industry standard for black-and-white line tracking.
▪Integrated IR Shielding: The sensor housing is designed to minimize interference from ambient light, ensuring that only the reflected IR from the surface is measured for maximum accuracy.
▪Dual Output Mode: Includes an Analog Output (AO) for measuring relative reflection intensity and a Digital Output (DO) for high-speed TTL switching, giving you the flexibility for both simple and complex logic.
▪Compact Track Detection: Its small footprint makes it a mechanical necessity for multi-sensor arrays, allowing you to mount 3 to 5 sensors in a row for high-speed, high-resolution line Following.
▪Versatile Application Range: Beyond robotics, this module is ideal for pulse data sampling on electricity meters, fax machine paper detection, and object counting on conveyor belts.
Sensing Technology
Infrared Reflective (TCRT5000L).
Operating Voltage
3.3V to 5V DC
Detection Distance
1mm to 25mm (Optimal focal point at 2.5mm(.
Output Format
Digital (DO) and Analog (AO).
Comparator IC
LM393 (Ensures stable, jitter-free switching).
Sensitivity
Adjustable via integrated potentiometer.
Mounting
Fixed bolt hole for secure chassis attachment.
