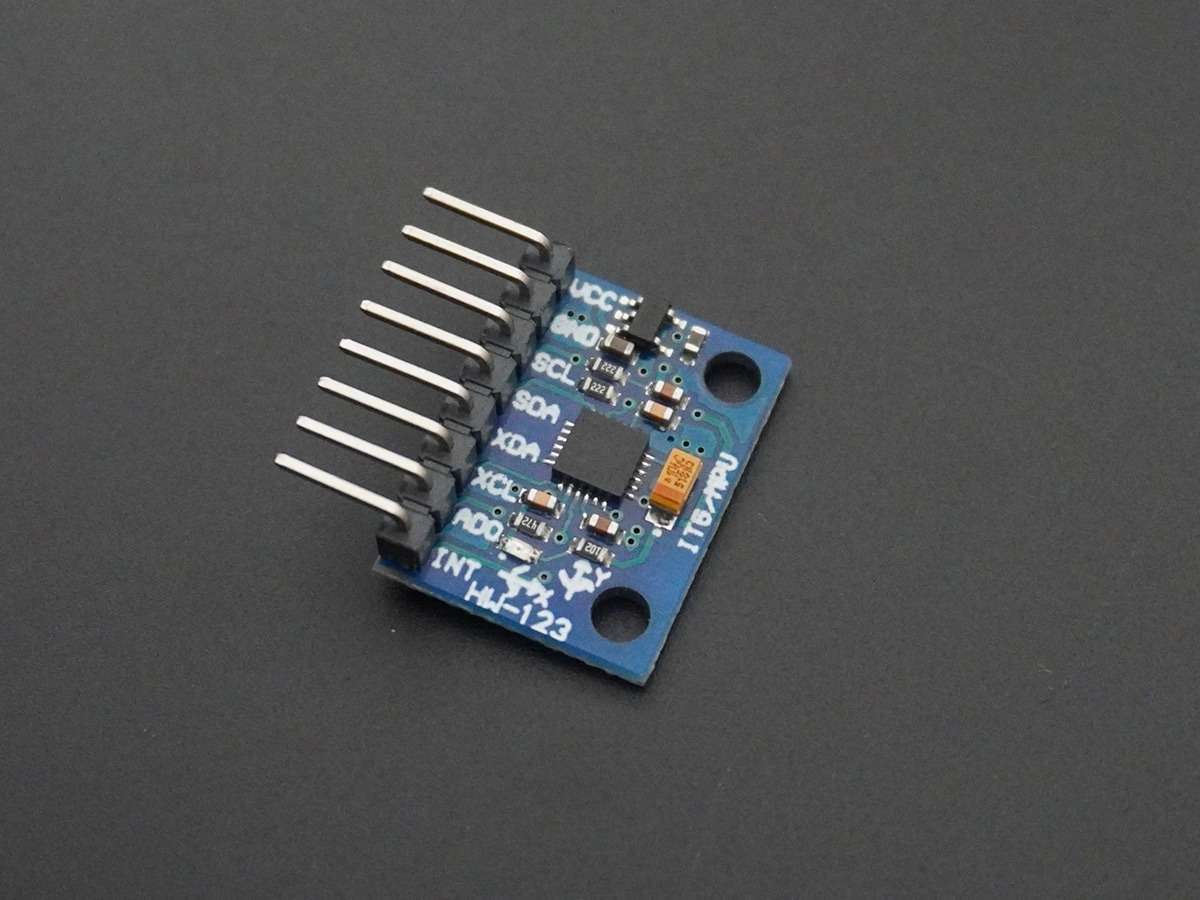

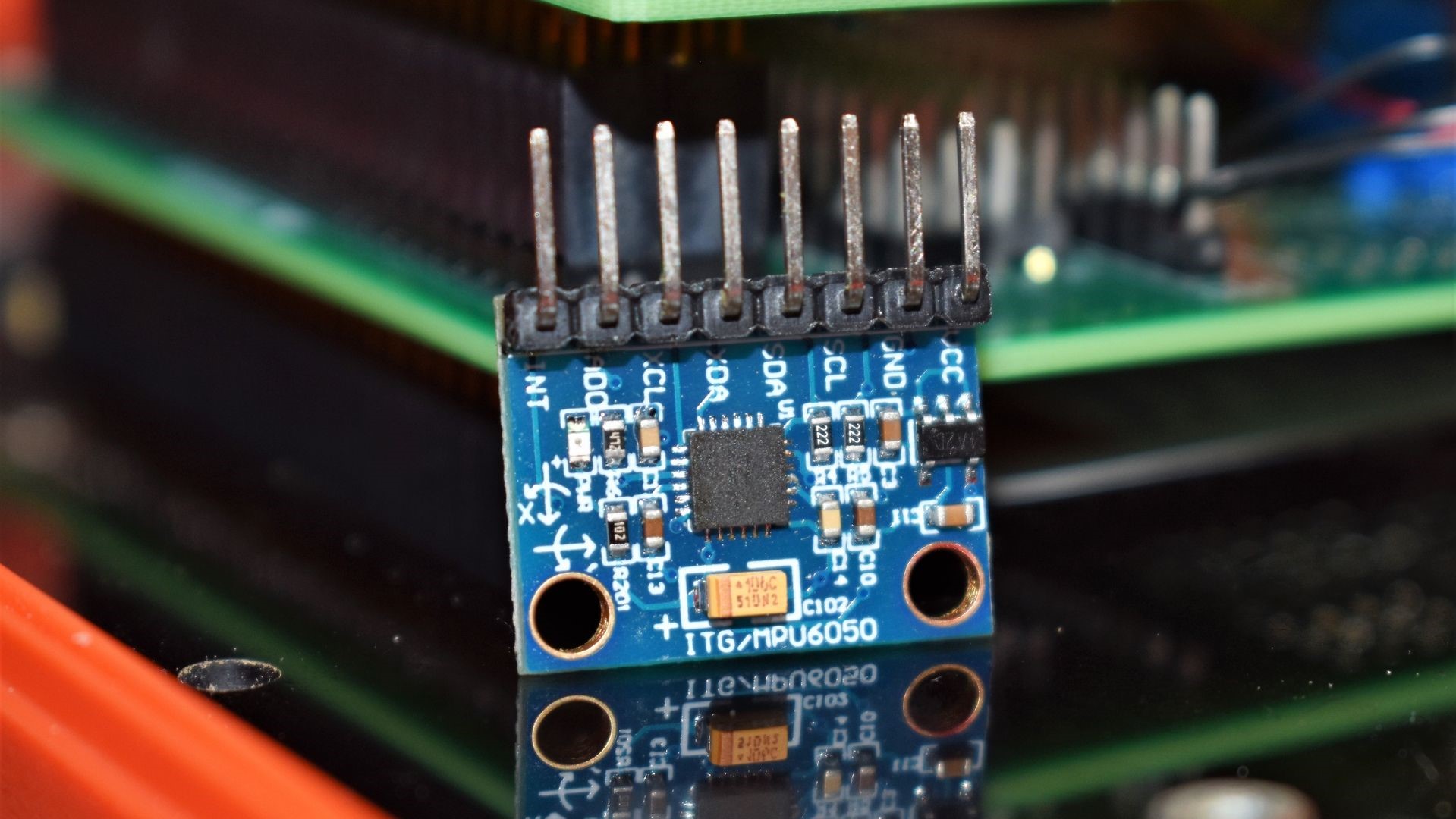

MPU6050 (Gyro + Accelerometer)

★★★★★

0.0/5 (0 reviews)

₹159

₹212

25% off

The MPU6050 is the world’s leading 6-axis MotionTracking device, integrating a 3-axis gyroscope and a 3-axis accelerometer on a single silicon die. It features an onboard Digital Motion Processor™ (DMP™), which is a mechanical necessity for drones, gimbals, and humanoid robots, as it handles complex 9-axis MotionFusion algorithms internally. Communicating via a simple I2C interface, it provides stable, high-resolution motion data even in high-vibration environments.

✓ In Stock (38 available)

▪Integrated Digital Motion Processor (DMP): The DMP is a mechanical necessity because it offloads complex quaternion and Euler angle calculations from your microcontroller, reducing code complexity and improving system response time.

▪MEMS Technology Precision: Utilizing Micro-Electro-Mechanical Systems, the MPU6050 detects minute changes in tilt and angular velocity, providing the high-frequency feedback required for quadcopter flight controllers.

▪Auxiliary I2C Master Bus: Uniquely allows the MPU6050 to act as a master to external sensors, such as a magnetometer, turning this 6-axis module into a complete 9-axis MotionFusion system without extra CPU pins.

▪Programmable Low-Pass Filters: Features a user-configurable digital filter to eliminate high-frequency mechanical noise, ensuring clean data for precision gimbal stabilization.

▪Ultra-Compact GY-521 Breakout: The module comes on a standardized PCB with breadboard-friendly pins, making it a "drop-in" solution for STEM educational kits and DIY robotics prototypes.

Sensor Type

6-Axis Motion Tracking (3-axis Gyro + 3-axis Accel).

Communication Protocol

I2C (Up to 400kHz).

Operating Voltage

3V to 5V DC (Onboard 3.3V regulator included).

Gyroscope Range

Programmable ±250, ±500, ±1000, ±2000 °/sec.

Accelerometer Range

Programmable ±2g, ±4g, ±8g, ±16g.

ADC Resolution

16-bit (High-fidelity analog-to-digital conversion).

Additional Feature

Built-in Temperature Sensor for thermal drift compensation.
