STMicroelectronics

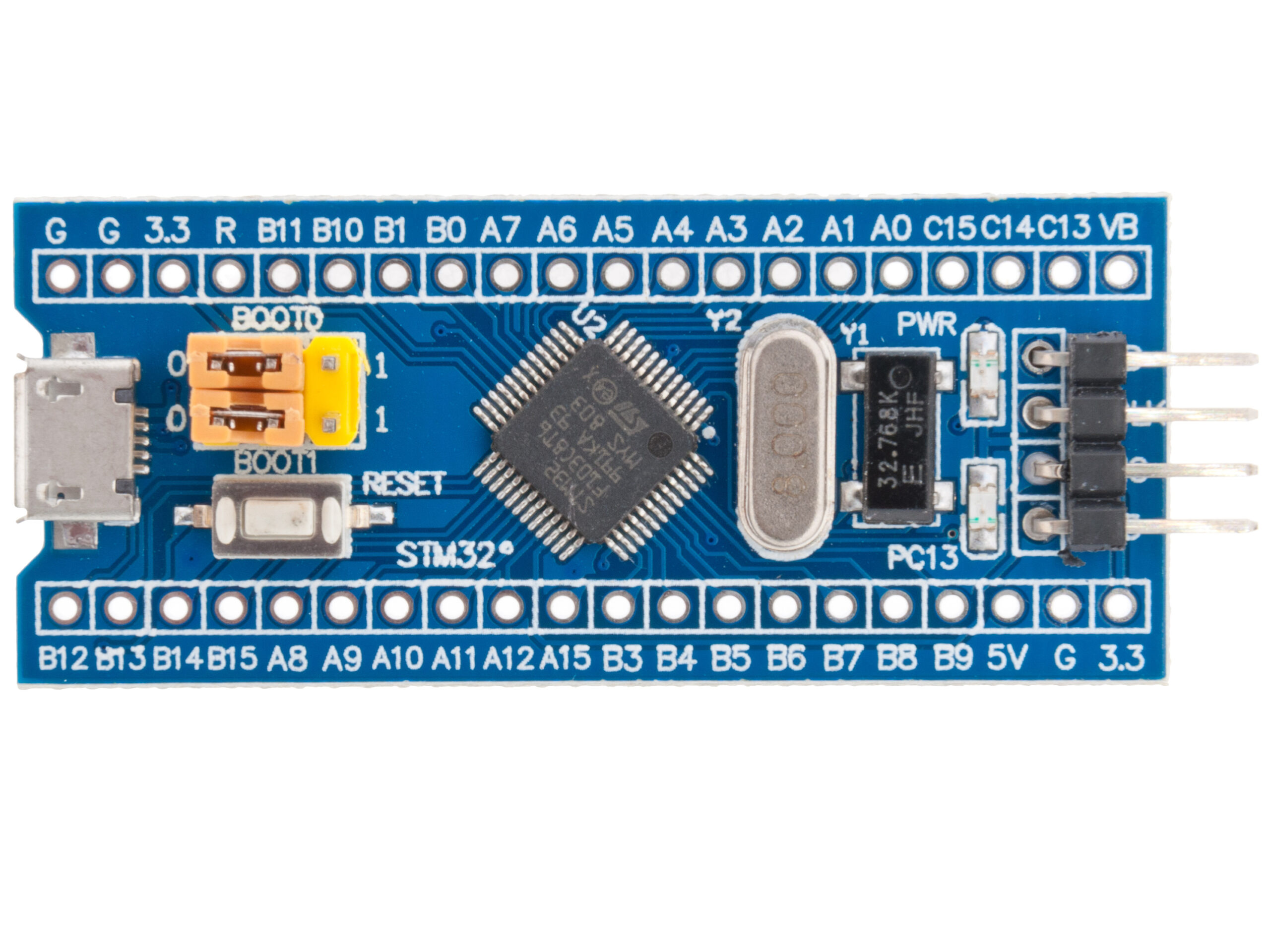

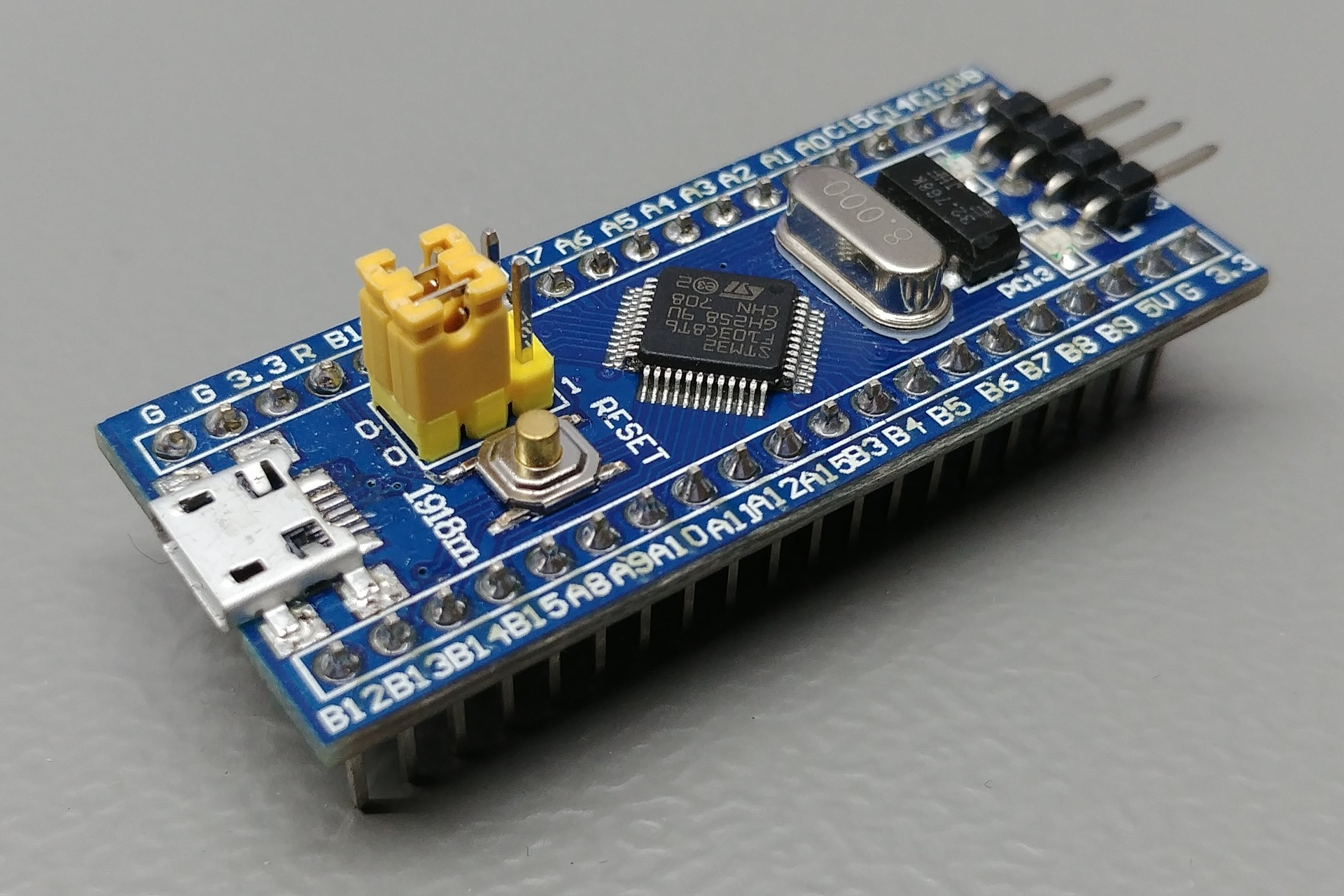

STM32 Blue Pill | STM32F103C8T6

★★★★★

0.0/5 (0 reviews)

₹219

₹295

26% off

STM32F103C8T6 “Blue Pill” is a powerful 32-bit development board built on the ARM Cortex-M3 architecture, ideal for engineers and advanced students. It delivers high clock speed, increased memory, and precise peripherals compared to 8-bit boards. Perfect for applications like flight controllers, CAN-bus systems, and RTOS-based projects, it offers professional performance in a compact, breadboard-friendly design.

✓ In Stock (46 available)

▪32-Bit ARM Cortex Performance: The Blue Pill is a mechanical necessity because it delivers over 4x the clock speed of an Arduino Nano, allowing for complex mathematical filtering and smoother motor control in robotics.

▪High-Resolution 12-Bit ADC: Unlike standard 10-bit microcontrollers, the STM32 features 12-bit ADCs, providing 4096 levels of sensitivity—a mechanical necessity for precision data logging and high-fidelity sensor reading.

▪Integrated DMA Controller: Features a 7-channel DMA, which allows data to move between peripherals and memory without taxing the CPU. This is a mechanical necessity for high-speed communication and jitter-free performance.

▪Industrial CAN-Bus Support: Includes a native CAN 2.0B interface, making it the top-rated low-cost board for automotive hacking, OBD-II readers, and industrial networking projects.

▪Flexible Programming Options: While it is a professional ARM chip, it is fully compatible with the Arduino IDE (STM32duino), as well as professional environments like Keil, STM32CubeIDE, and MicroPython.

Core

ARM 32-Bit Cortex-M3 CPU

Clock Speed

72 MHz (Maximum).

Memory

64 KB Flash and 20 KB SRAM.

Operating Voltage

2.0V to 3.6V (Module includes 3.3V regulator).

I/O Pins

37 GPIOs (Many are 5V Tolerant).

ADCs

2x 12-bit Analog-to-Digital Converters (Up to 10 channels).

Communication

3x USART, 2x I2C, 2x SPI, and 1x CAN 2.0B.

Debug

Serial Wire Debug (SWD) support.

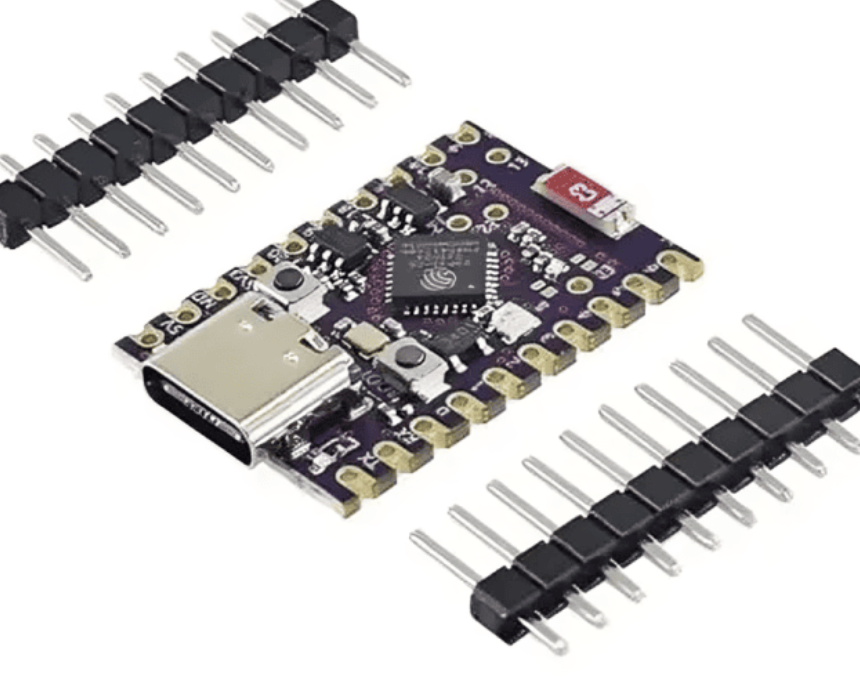

ESP32-C3 SuperMini WiFi + Bluetooth 5.0 Development Board | RISC-V IoT Board with USB-C

₹319

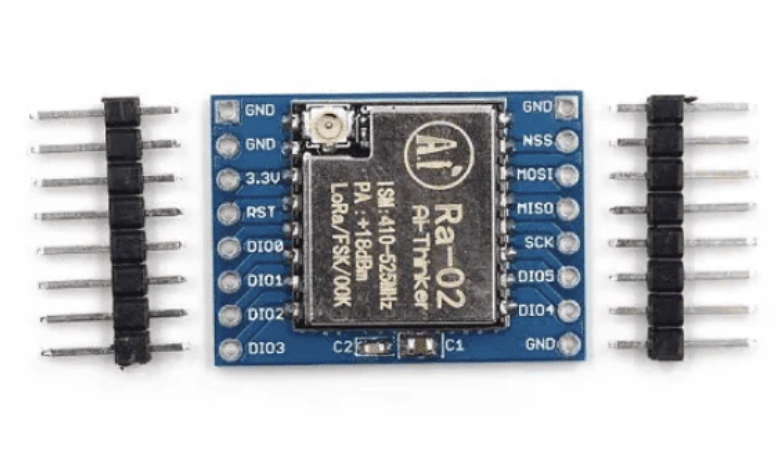

LoRa RA-02 Wireless Module (SX1278, 433MHz) | Long Range LoRa Transceiver for Arduino, ESP32 & Raspberry Pi

₹496

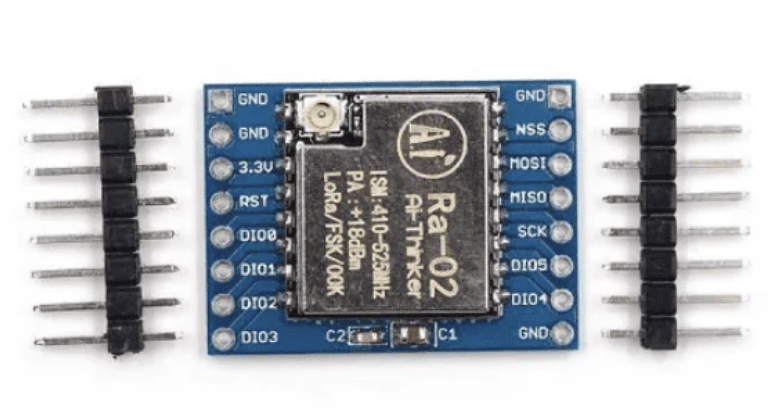

LoRa SX1278 433MHz Wireless Transceiver Module | Long Range RF Module for Arduino, ESP32, Raspberry Pi & IoT

₹531

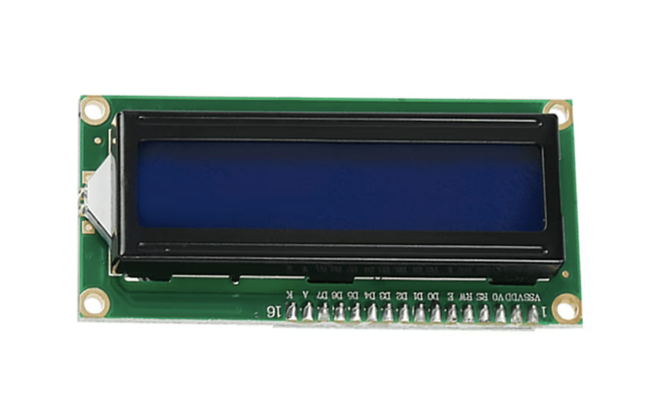

16x2 LCD Display Module (Blue Backlight) | HD44780 Character LCD for Arduino, ESP32 & Raspberry Pi

₹106

ESP32-S3 DevKit N16R8 Dual USB Port with OV3660 Camera | WiFi + Bluetooth AI Vision Development Board

₹1,746

ESP32-S3 CAM DevKit N16R8 Dual USB Port with 2MP Camera | WiFi + Bluetooth AI Development Board

₹1,168

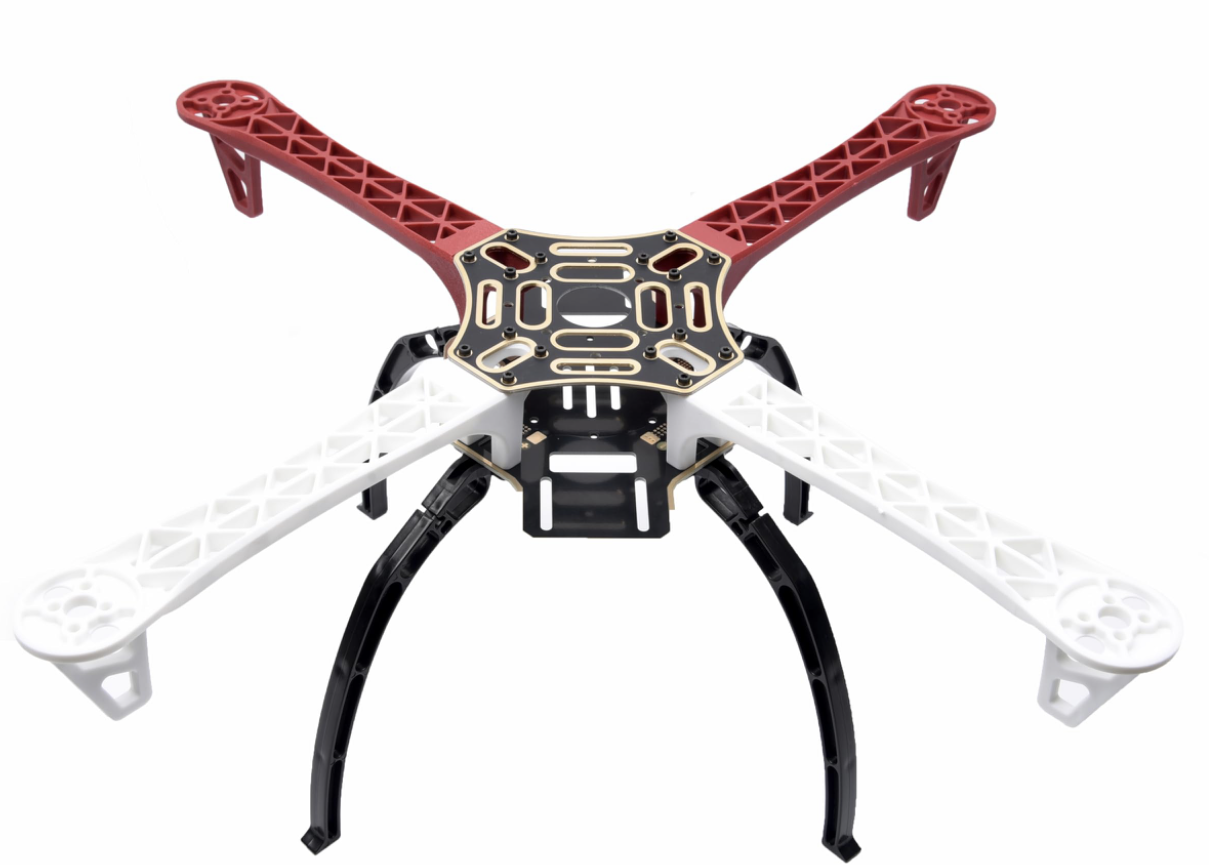

F450 Quadcopter Frame Kit (450mm) – Glass Fiber & Nylon Drone Frame for DIY UAV Projects

₹2,242

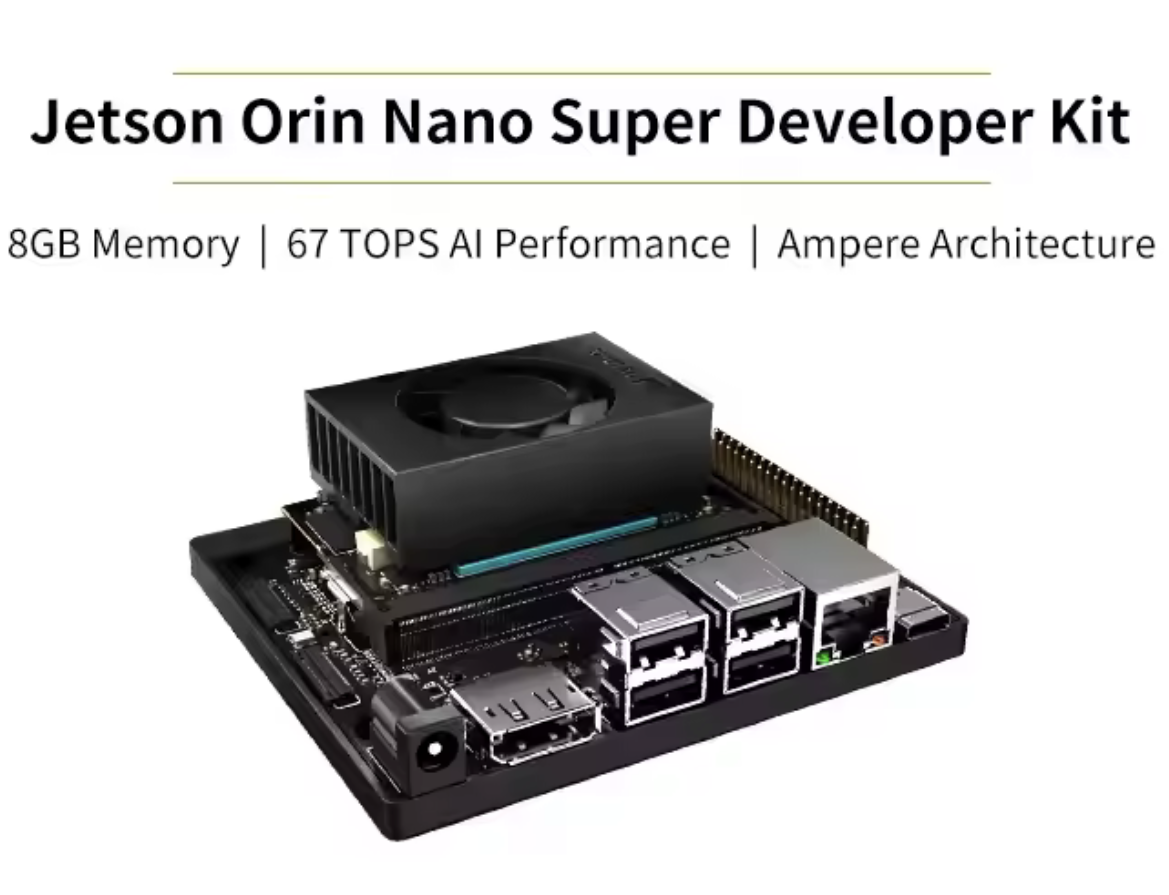

) – AI & Robotics Edge Computing Kit
