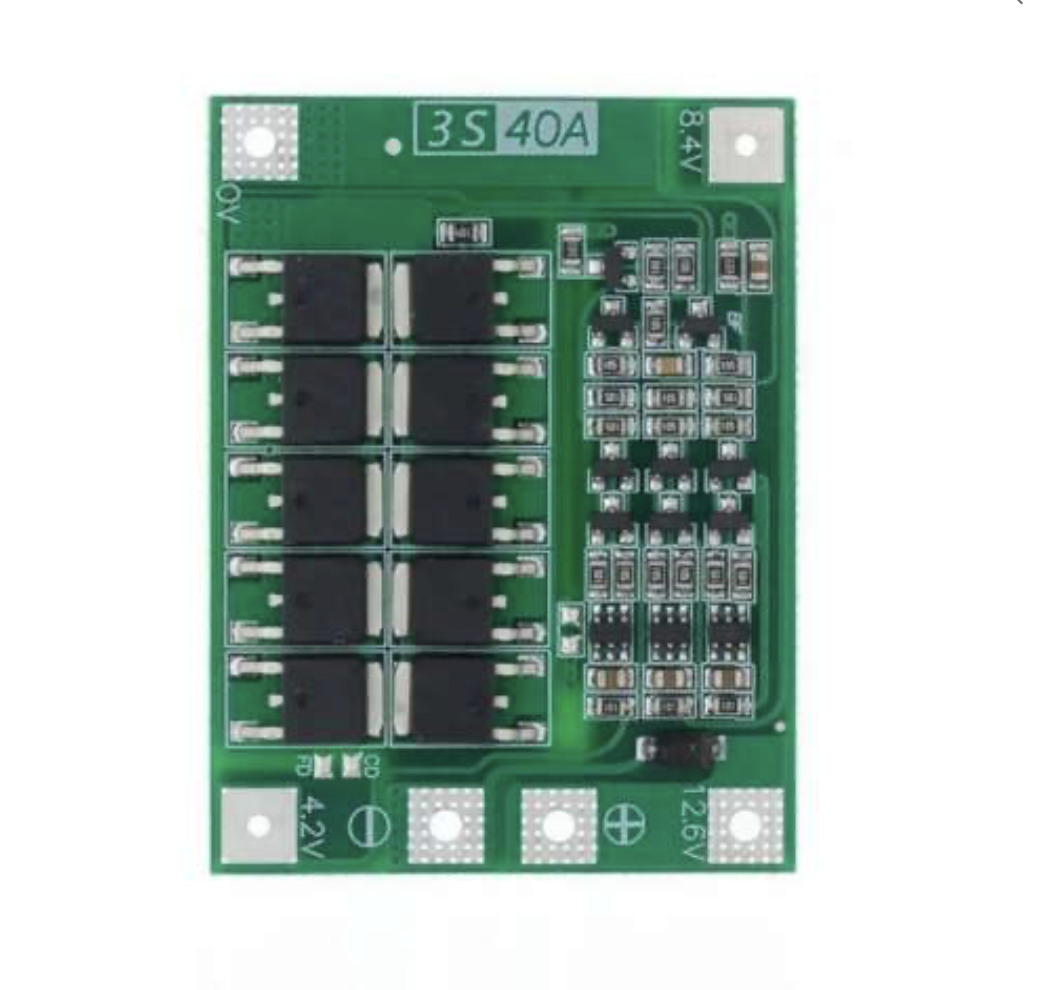

3S 40A 12.6V Li-ion BMS Protection Board

★★★★★

0.0/5 (0 reviews)

₹259

₹388

33% off

This module acts as the guardian of your 18650/21700 lithium pack. It ensures that your cells are not overcharged, over-discharged, or short-circuited, which is critical for both the safety of your project and the longevity of your batteries. Build More. Spend Less. 🚀⚡ Add to Cart at tsquarey.store

✓ In Stock (60 available)

▪High Discharge Ceiling: Supports a continuous discharge current of 40A, handling peak loads from heavy-duty motor drivers like the BTS7960 effortlessly.

▪Triple-Layer Defense: Integrated hardware protection against overcharge, over-discharge, and short-circuit scenarios.

▪Low Resistance MOSFETs: Uses high-quality, low-RDS(on) MOS transistors to minimize heat generation during high-current operation.

▪Improved Heat Dissipation: The "Enhanced Version" features a larger copper area and better thermal design compared to standard 20A/30A boards.

▪Automatic Recovery: Automatically restores power to the load once the fault (like a short circuit) is removed, preventing manual resets.

Configuration

3S (3 Li-ion cells in series)

Nominal Voltage

10.8V – 11.1V

Full Charge Voltage

12.6V

Continuous Discharge Current

40A (Max)

Continuous Charge Current

20A (Max)

Overcharge Protection

4.25V ± 0.05V per cell

Over-discharge Protection

2.5V ± 0.08V per cell

Dimensions

41mm x 55mm (Compact for mobile chassis)
